High Efficiency LG NeON® 2 Black ACe Module Cells: 6 x 10 Module efficiency 18.7% 320E1K-A5
Mechanical Properties
Cells |
6 x 10 |
Cell vendor |
LG |
Cell type |
Monocrystalline / N-type |
Cell dimensions |
161.7 x 161.7 mm / 6 inches |
# of busbar |
12 (Multi Wire Busbar) |
Dimensions (L x W x H) |
1686 x 1016 x 40 mm / 66.38 x 40 x 1.57 inch |
Weight |
19.0 kg / 41.88 lbs |
Front Load |
6000Pa |
Rear Load |
5400Pa |
Cooling |
Natural Convection – No Fans |
Enclosure Environmental Rating |
Outdoor – NEMA 250 type 6 (MIC) |
Operating Ambient Temperature |
-40 ~ +65 °C (-40 ~ +149 °F) |
Storage Temperature |
40 ~ +85 °C (-40 ~ +185°F) |
Glass |
High transmission tempered glass |
Frame |
Anodized aluminum |
Inverter Model (Utility Interactive) |
Enphase IQ6+ Microinverter |
Certifications and Warranty
Certifications (AC Module) |
UL 1741, UL 1703 |
Certifications (Micro Inverter) |
UL 1741 / IEEE 1547, UL 62109-1, FCC Part 15 Class B, ICES-0003 Class B, CAN/CSA-C22.2 NO. 107.1-01 |
Module Fire Performance (UL1703) |
Type 2 |
Solar Module Product Warranty |
12 years |
Micro Inverter Warranty |
25 years |
Output Warranty of Pmax (DC) (Measurement Tolerance ± 3%) |
Linear Warranty* |
* |
1) 1st year: 98%, 2) After 1st year: 0.55% annual degradation, 3) 25 years: 84.8% |
DC Temperature Characteristics
NOCT* |
45 ± 3 °C |
Pmpp |
-0.37 %/°C |
Voc |
-0.27%/°C |
Isc |
0.03 %/°C |
DC Electrical Properties (STC*)
Maximum Power (Pmax)* |
320 |
Module Efficiency |
18.7 |
Power Tolerance (%) |
0 ~ +3 |
* |
STC (Standard Test Condition): Irradiance 1,000 W/m², Ambient Temperature 25 °C, AM 1.5 / The nameplate power output is measured and determined by LG Electronics at its sole and absolute discretion / The Typical change in module efficiency at 200W/m² in relation to 1000W/m2 is -2.0% |
AC Electrical Properties
Peak Output Power (VA) |
290 |
Max. Continuous Output Power (VA) |
280 |
Nominal Voltage / Range (V) |
240 / 211~264 |
Nominal Output Current (A) |
1.17 |
Nominal Frequency / Range (Hz) |
60.0 / 59.3~60.5 |
Power Factor / Adjustable |
1 / 0.7leading…0.7lagging |
CEC Weighted Efficiency (%) |
97 |
Max. Branch Circuit Over Current Protection (A) |
20 |
Number of Max. AC Modules |
13 |
LG Solar 320 Watt Neon 2 ACe Data Sheet

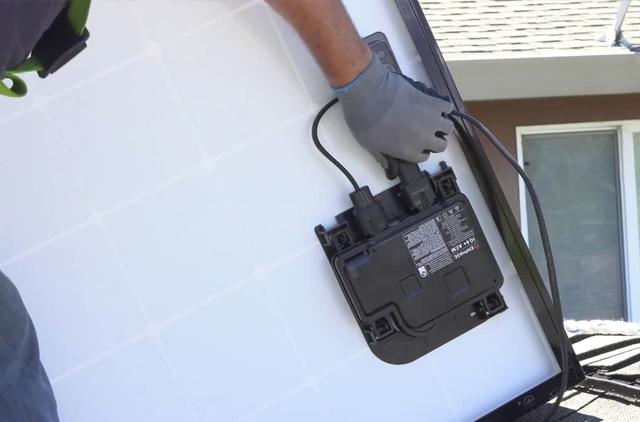

Install video
Enphase Data Sheet
The high-powered smart grid-ready
Enphase IQ 6 Micro™ and Enphase IQ 6+ Micro™
dramatically simplify the installation process while
achieving the highest efficiency for module-level
power electronics.
Part of the Enphase IQ System, the IQ 6 and
IQ 6+ Micro integrate seamlessly with the Enphase
IQ Envoy™, Enphase Q Aggregator™, Enphase IQ
Battery™, and the Enphase Enlighten™ monitoring
and analysis software.
The IQ 6 and IQ 6+ Micro extend the reliability
standards set forth by previous generations and
undergo over a million hours of power-on testing,
enabling Enphase to provide an industry-leading
warranty of up to 25 years.
