IRON RIDGE PITCHED ROOF MOUNT

Pitched Roof Mounting
Every component in the IronRidge Flush Mount System has been tested to the limit and proven in extreme environments: rain, wind and snow.

Our rigorous approach has led to unique structural features, such as curved rails, universal fastening objects and reinforced flashings. All of our products are fully-certified, code-compliant, listed to UL 2703 and backed by a 20-year warranty.

Category:

Description

Flush Mount System Features

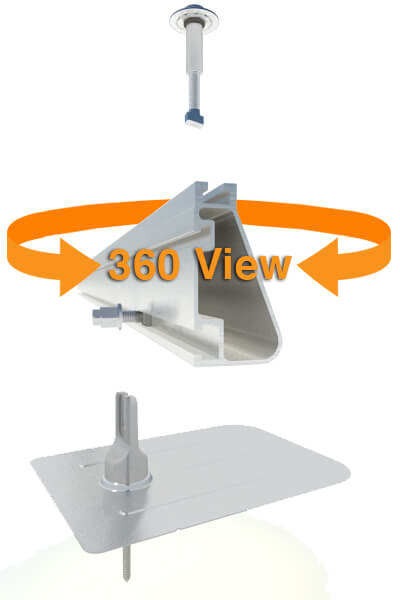

fm_exploded_360_view-0f977b20436e264189fa1ff11f2f1736

UFOs (Universal Fastening Objects)

Accommodating a wide range of module frame heights (30-48mm), each UFO bonds with the module frame and the rail to form a parallel bonding path that is repeated throughout the array.

XR Rails

XR Rails are the backbone of the solar array. Their unique curved profile increases structural strength and spanning capability, allowing for fewer roof penetrations and more cost-effective system designs.

FlashFoot 2

IronRidge FlashFoot2™ replaces separate standoffs, flashings, and L-feet with an all-in-one design that incorporates both structural and waterproofing features.

_________________________________________________________________________________________________________________

XR Rails

XR Rails are the backbone of the solar array. Their unique curved profile increases structural strength and spanning capability, allowing for fewer roof penetrations and more cost-effective system designs.

XR Rails are available in three targeted sizes: XR10, XR100 & XR1000. Each size supports specific design loads, while minimizing material costs. Depending on your location, there is an XR Rail to match.

new-rail-family-00ede62e131392b3bc5d1e2e63373bea

Find out the spanning capabilities in different wind and snow conditions for each of our new rails.
Download

 ____________________________________________________________________

Universal Fastening Object

The UFO (Universal Fastening Object) is a one-size-fits-all, single-piece fastener that quickly and securely bonds solar modules to XR Rails. It comes lubricated and assembled, with a sleek, low-profile design. Simply snapping on a Stopper Sleeve transforms the UFO into an end clamp.

The UFO is a part of the IronRidge Integrated Grounding System, which is listed to UL 2703 and eliminates the need for separate grounding hardware.

ufos_double-22f0110920194f97d4956c6d3a486e05

Watch the Video

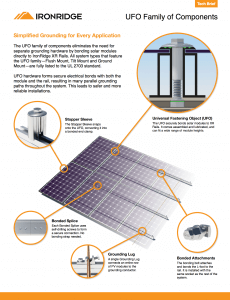

Read the Tech Brief

The UFO family of components delivers integrated grounding and makes installation a snap.
Download

 ________________________________________________________________________________________________________________

FlashFoot2

FlashFoot2 is an all-in-one roof attachment for mounting XR Rails to composition shingle roofs. Its integrated design incorporates both structural and waterproofing features into a single assembly. This eliminates the need for separate standoffs, flashings, and L-feet, and reduces the overall number of installation procedures.

slide3ff2_home_banner

Watch the Video

Read the Tech Brief

The UFO family of components delivers integrated grounding and makes installation a snap.
Download

Data Sheet

Install Guide
